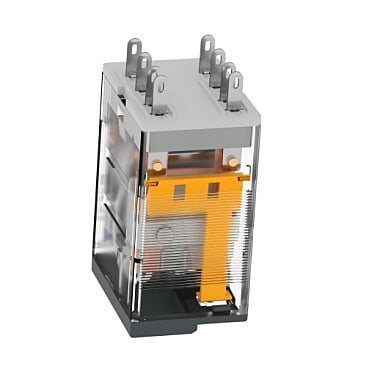

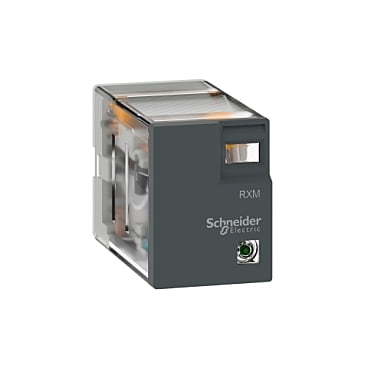

Schneider Relay RXM 2LB2B7 miniature plug-in relay - Zelio RXM2L - 2 C/O - 230 V AC - 5 A - with LED
Non-returnable
₹950.00 ₹1,500.00
Schneider brand
RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 2 C/O relay with current rating of 5A, control circuit voltage of 230 V AC 50/60 Hz. It also offers a mechanical indicator where an orange flag indicates the relay contact status. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. A green LED on the front will illuminate when the relay is on. Status display with LED: clearly signal both in the day and night. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE. RXM relay need to be used with a RXZE socket RXZE1M2C. To protect against vibrations, metal clamp RXZ410/RXZ420 can be added to the socket. It is sold in lots of 10 and reference includes relay only. The RXMLB plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (5A), 4 CO (3A) contacts.
Product Details
| Range of product | Harmony Electromechanical Relays |
|---|---|
| Series name | Miniature |
| product or component type | Plug-in relay |
| device short name | RXM |
| Coil interference suppression | Without |
| Utilisation coefficient | 20 % |
| Sale per indivisible quantity | 10 |
| Contacts type and composition | 2 C/O |
|---|---|
| contact operation | Standard |
| [Uc] control circuit voltage | 230 V AC 50/60 Hz |
| [Ithe] conventional enclosed thermal current | 5 A at -40…55 °C |
| Status LED | With |
| Control type | Without push-button |
| [Ui] rated insulation voltage | 250 V conforming to IEC |
| [Uimp] rated impulse withstand voltage | 4 kV during 1.2/50 µs conforming to IEC 61810-7 |
| Contacts material | Silver alloy (Ag/Ni) |
| [Ie] rated operational current | 5 A (AC-1/DC-1) NO conforming to IEC 2.5 A (AC-1/DC-1) NC conforming to IEC 1 A at 28 V (DC-13) NO |
| Minimum switching current | 10 mA |
| Maximum switching voltage | 250 V AC 28 V DC |
| Minimum switching voltage | 17 V |
| Load current | 5 A at 250 V AC 5 A at 28 V DC |
| Maximum switching capacity | 1250 VA AC 140 W DC |
| Minimum switching capacity | 170 mW |
| Operating rate | <= 1200 cycles/hour under load <= 18000 cycles/hour no-load |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 100000 cycles for resistive load 50000 cycles, 1 A at 28 V, DC-13 NO |
| Average coil consumption in VA | 1.2 AC |
| Drop-out voltage threshold | >= 0.15 Uc AC |
| Operating time | 20 ms between coil de-energisation and making of the Off-delay contact 20 ms between coil energisation and making of the On-delay contact |
| Average resistance | 16500 Ohm at 23 °C +/- 15 % |
| Rated operational voltage limits | 184...253 V AC |
| Protection category | RT I |
| Test levels | Level A group mounting |
| Operating position | Any position |
| CAD overall width | 21 mm |
| CAD overall height | 27 mm |
| CAD overall depth | 46 mm |
| Net weight | 0.031 kg |
| Dielectric strength | 2000 V AC between coil and contact with basic insulation 2000 V AC between poles with basic insulation 1000 V AC between contacts with micro disconnection |
| Safety reliability data | B10d = 100000 |
