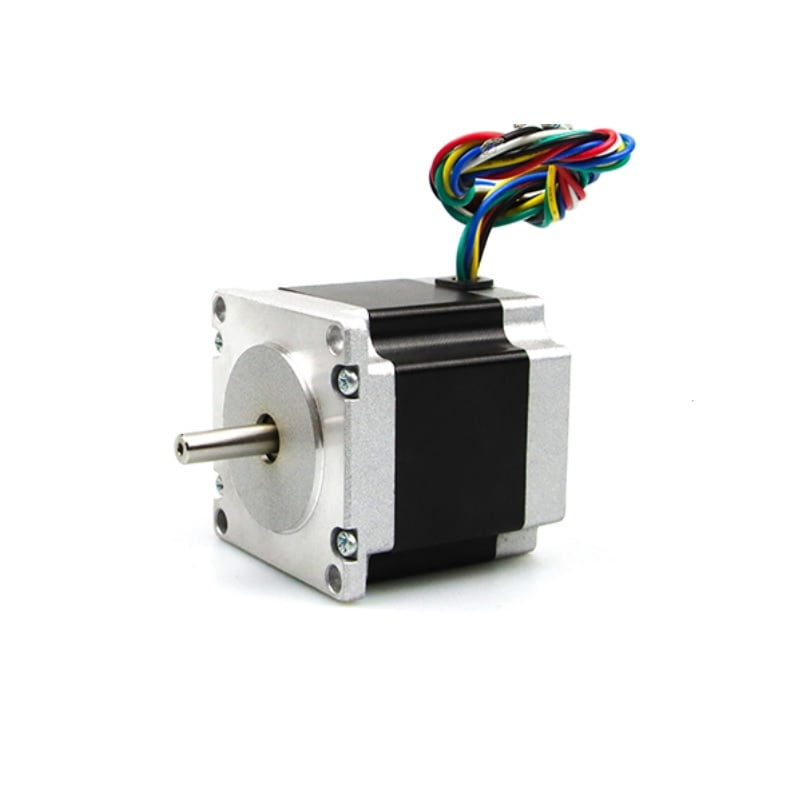

57HM51 NEMA23 10Kg-cm Stepper Motor Round-Type
The 57HM56-2804 NEMA 23 Stepper Motor is a reliable and robust 2-phase hybrid stepper motor designed for precision motion control in a wide range of applications including CNC routers, 3D printers, robotics, automation systems, and industrial equipment.
This stepper motor features a standard NEMA 23 frame (57 mm × 57 mm) and a 56 mm body length, making it compatible with most NEMA 23 mounting systems. It has a 0.9° step angle for high-resolution movement and a holding torque of approximately 12 kg·cm (≈1.2 N·m), delivering powerful torque for smooth and accurate positioning.
With a rated current of 2.8 A per phase, 0.9 Ω resistance, and 4 lead wires, this motor offers reliable performance and stable operation under load. Its rugged construction ensures durability and long operational life even in demanding environments.
The 57HM56-2804 stepper motor is easy to integrate with popular drivers and controllers, making it suitable for DIY enthusiasts, machine builders, and industrial automation projects alike.
